Lidar technology, leveraging pulses of infrared light to meticulously calculate distances, generates remarkably detailed 3D maps of its immediate surroundings. This sophisticated capability is paramount for the burgeoning field of autonomous vehicles, enabling them to precisely detect objects in their path and react with the swiftness essential for safe navigation. However, the widespread adoption of lidar has historically been hampered by several significant drawbacks. Conventional lidar sensors are often bulky, prohibitively expensive, and frequently incorporate delicate moving components such as spinning mirrors or mechanical scanners. These moving parts are susceptible to wear and tear, reducing durability and reliability, especially in harsh operational environments. Such inherent limitations restrict their applicability across a broader spectrum of settings, from consumer electronics to advanced robotics.
In a groundbreaking development, researchers at the Massachusetts Institute of Technology (MIT) have engineered an innovative approach poised to revolutionize lidar technology. Their work promises the advent of smaller, more robust lidar sensors that operate entirely without any moving parts, representing a significant leap towards solid-state lidar. This advancement is centered on a novel silicon-photonics chip – a cutting-edge type of semiconductor device that manipulates light signals rather than traditional electrical currents. This integration of optical functionalities onto a silicon chip offers unparalleled advantages in terms of size, cost, and manufacturability.
Existing lidar systems built upon silicon-photonics chips, while promising, have typically suffered from a critical constraint: a narrow field of view. This inherent limitation means they struggle to scan areas located towards the periphery of a scene, a severe impediment for applications like autonomous driving where a comprehensive 360-degree environmental understanding is crucial. Previous attempts to broaden this viewing range often introduced undesirable side effects, such as increased signal noise and a noticeable reduction in measurement accuracy, effectively trading one problem for another.
The MIT team, however, meticulously addressed these long-standing issues. Their solution lies in the ingenious design of an array of integrated antennas that dramatically curtails unwanted crosstalk. Crosstalk, a common phenomenon in closely packed electronic or optical components, occurs when neighboring antennas interfere with one another, corrupting the intended signal. By mitigating this interference, their innovative design empowers the chip to scan across a significantly broader field of view while simultaneously generating substantially less noise compared to other silicon-photonics-based methods, marking a pivotal breakthrough in the quest for high-performance, compact lidar.
This remarkable advance holds immense potential to underpin the development of more capable and reliable lidar sensors, particularly for demanding applications where traditional systems fall short. Such uses include the critical navigation systems of autonomous vehicles, high-precision aerial mapping for surveying and urban planning, and the rigorous monitoring of dynamic construction sites, where robust and accurate spatial awareness is non-negotiable. The implications extend far beyond these immediate examples, suggesting a future where lidar is not just a specialized tool but an ubiquitous component in various technological ecosystems.
"The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously," states Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT and a distinguished member of the Research Laboratory of Electronics. As the senior author of the seminal paper detailing this innovation, Notaros underscores the profound impact of their research on the trajectory of integrated photonics and sensing. Her perspective highlights that this isn’t merely an incremental improvement but a resolution to a core challenge that has historically constrained the technology.
The comprehensive study, which has garnered significant attention in the scientific community, also features the invaluable contributions of lead author and EECS graduate student Henry Crawford-Eng. Collaborating alongside him were fellow EECS graduate students Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh, forming a formidable team whose collective expertise propelled this discovery. Their findings, a testament to rigorous research and innovative problem-solving, were formally published recently in the esteemed journal Nature Communications, signaling its significance and broad scientific interest.
To fully appreciate the MIT team’s achievement, it is essential to understand the fundamental principles of how lidar maps its surroundings. Many traditional lidar systems, especially those prevalent in early autonomous vehicle prototypes, employ a large, often conspicuous, rotating unit. This mechanical assembly is responsible for directing pulses of laser light across a scene in a sweeping motion. When these light pulses encounter nearby objects – whether a pedestrian, another vehicle, a tree, or a building – they reflect back toward the sensor. The system then precisely measures the "time of flight" for each pulse, calculating the time it takes for the light to travel from the sensor, hit an object, and return. By combining these time measurements with the known speed of light, the system can determine the exact distance to each point. The aggregation of millions of such distance measurements rapidly reconstructs a highly detailed, three-dimensional "point cloud" map of the environment, providing rich spatial data that complements other sensors like cameras and radar.
Silicon-photonics-based lidar operates on a fundamentally different principle, eschewing the need for cumbersome mechanical rotation. Instead of physically moving a device, it electronically scans a beam of light in various directions using a sophisticated system known as an integrated optical phased array (OPA). This solid-state approach eliminates the vulnerabilities associated with moving parts, paving the way for more compact, durable, and energy-efficient lidar systems. The integration of optics onto a silicon chip also means that these devices can leverage existing semiconductor manufacturing processes, promising scalability and significant cost reductions in mass production – a crucial factor for widespread adoption.
At the very core of an OPA lies a precisely arranged group of integrated antennas. Each individual antenna is not a simple structure but contains tiny, regularly spaced variations along its length. These meticulously crafted features, known as corrugations, play a critical role in the system’s functionality. They cause light from an input source, typically a laser, to scatter upward and out of the photonic chip, directing the light into the environment. The precision with which these corrugations are designed and spaced dictates how the light interacts with the chip’s surface and propagates outwards.
The true ingenuity of OPAs lies in their ability to electronically control the direction of the outgoing light beam. Researchers can precisely manipulate the phase of the light sent to each antenna within the array. By adjusting these phases – essentially altering the timing of the light waves relative to one another – they can change the angle at which the entire array collectively releases light. This phase-shifting mechanism allows the beam to be steered across a wide angular range without any physical components needing to move. This capability is analogous to how a phased-array radar system steers its radio waves, but applied to optical frequencies, offering unprecedented agility and control over the light beam.

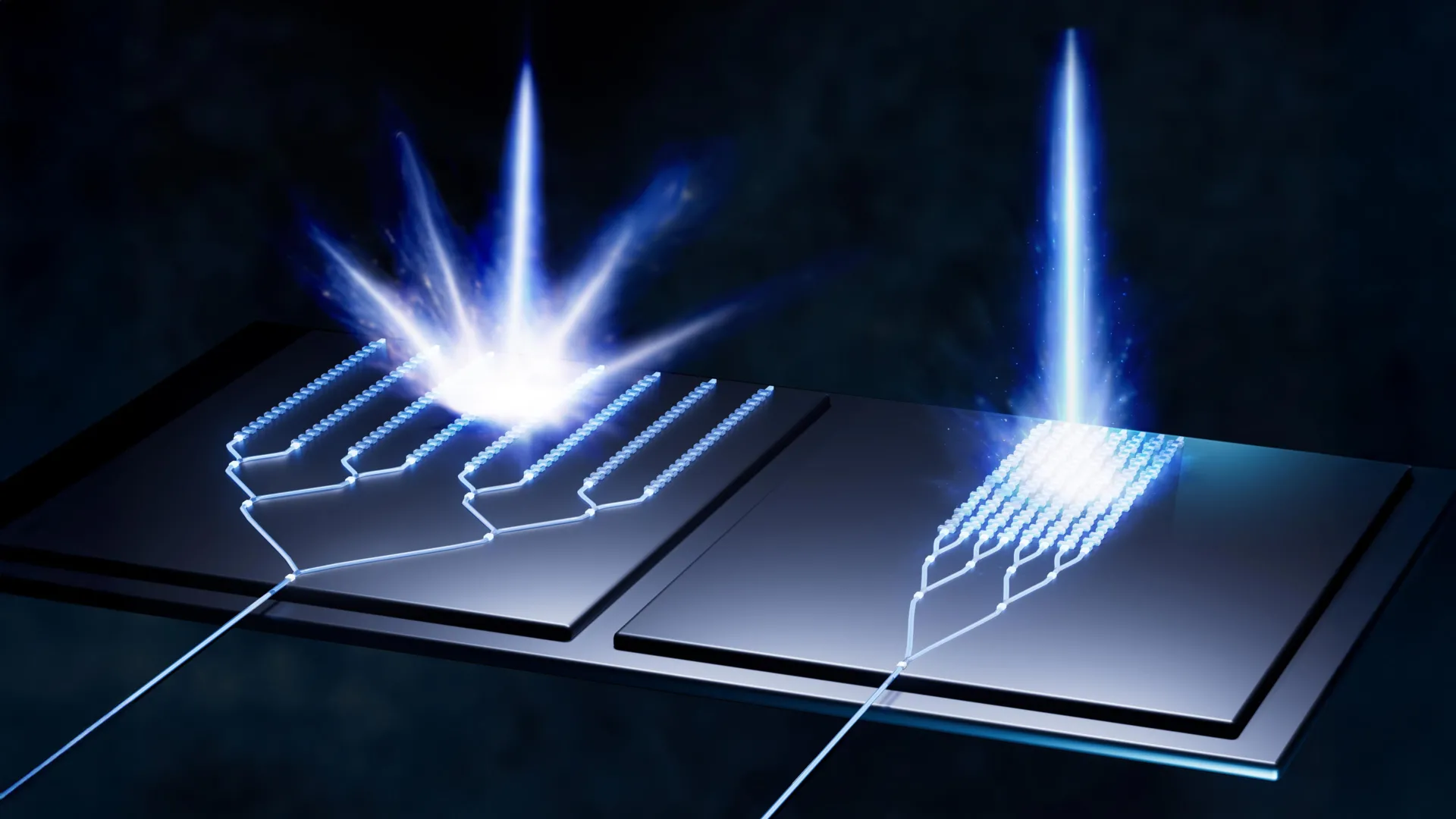

However, a significant engineering hurdle has historically plagued the development of high-performance OPAs: the antenna spacing problem. Placing the antennas too close together, while desirable for achieving a wide field of view, creates a serious obstacle. Neighboring antennas can "couple" with one another, meaning their light signals interfere and scramble, leading to a degraded or distorted output beam. Engineers have traditionally tried to circumvent this interference by increasing the distance between adjacent antennas. While this approach reduces crosstalk, it introduces a different set of problems, primarily the generation of unwanted "grating lobes."
When antennas are spaced too far apart, the array, due to the physics of diffraction, produces not just the intended primary beam but also several copies of the same beam at different angles. These additional copies are known as grating lobes. The presence of grating lobes severely limits the useful field of view of the sensor. The primary beam can only be moved a limited angular distance before it becomes indistinguishable or merges with these additional, spurious copies. As Andres Garcia Coleto, one of the EECS graduate students involved in the research, explains, "This limits our field of view, so the autonomous vehicle now only knows what is in front of it for a certain angular range."
Beyond restricting the field of view, these unwanted beam copies can confuse the lidar sensor, potentially leading to false detections or misinterpretations of the environment. Moreover, the energy directed into these grating lobes is effectively wasted, diminishing the power and precision of the main beam, which is crucial for long-range detection and accurate mapping. To overcome this fundamental tradeoff between wide field of view and beam quality, the MIT researchers developed a truly novel design: antennas with drastically reduced crosstalk that could be positioned much closer together without strongly coupling.
The core of their innovation lies in designing three distinct antenna shapes to effectively reduce interference. In a conventional OPA, every antenna within the array typically possesses an identical structure and utilizes the same pattern of corrugations. While simplifying manufacturing, this uniformity becomes a liability when antennas are placed in close proximity; their matching geometries cause them to interact very strongly, leading to significant coupling and crosstalk.
The MIT team brilliantly circumvented this problem by creating a repeating set of three antennas, each with a distinct and carefully engineered shape. They varied key geometrical parameters, including the width of the antennas themselves, as well as the size and precise placement of the corrugations along their length. Because these antennas possess markedly different geometries, each one also exhibits a unique "propagation coefficient." This coefficient describes how light moves through the specific structure of that antenna. As Garcia Coleto elucidates, "Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor." This strategic differentiation in antenna design is the linchpin of their solution, allowing for dense packing without detrimental interference.
However, simply reducing coupling by making the antennas different was only part of the intricate challenge. The researchers faced a sophisticated engineering paradox: while the antennas needed to have distinct propagation coefficients to minimize crosstalk, they simultaneously had to release light in the same consistent and predictable manner to form a coherent, steerable beam. This requirement for both diversity and uniformity demanded an exceptionally nuanced design approach.
The team meticulously designed the antennas around three essential, and often conflicting, requirements. Firstly, each antenna had to emit the exact same amount of light, ensuring uniform illumination across the scanned scene. Secondly, every antenna needed to release its beam at precisely the same angle when receiving the same wavelength of light, maintaining beam integrity. Finally, and crucially for steerability, the angle of emission had to change smoothly and evenly across the entire array as the beam was electronically steered.
Henry Crawford-Eng articulates the complexity of this balancing act: "We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics. While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently." The team’s triumph lay in overcoming this inherent design tension. They initiated their process by developing a foundational electromagnetic theory that precisely described how radiative modes couple. This robust theoretical framework then served as a guiding principle for the intricate computer simulation and subsequent physical design of the antennas, allowing them to predict and optimize performance before fabrication.
Based on these exhaustive calculations and simulations, the team proceeded to manufacture an OPA incorporating their innovative reduced-crosstalk antennas. Crucially, these antennas were positioned significantly closer together than those in conventional OPA systems. Following fabrication, the completed device underwent rigorous experimental testing to validate its performance under real-world conditions.
The experimental results were nothing short of remarkable. Under the specific conditions of the experiment, a typical, conventional OPA would have exhibited coupling of approximately 100 percent, leading to severe signal degradation and unusable output. The MIT design, however, dramatically lowered that coupling to an astonishing approximately 1 percent. This unprecedented reduction in crosstalk was achieved while still successfully generating a single, clean, and highly precise beam, demonstrating the profound effectiveness of their novel antenna architecture.
The system not only maintained beam quality but also accurately steered the beam across a broad field of view without producing any of the problematic grating lobes. This synergistic combination of wide angular scanning, minimal interference, and superior beam quality directly addresses one of the most central and stubborn obstacles that has long confronted the advancement of integrated lidar technology. The ability to achieve both a wide field of view and high beam fidelity in a compact, solid-state form factor opens new avenues for lidar applications.
Looking ahead, the researchers are already planning to further refine their method to enable the system to cover an even broader viewing range, pushing the boundaries of what integrated lidar can achieve. They are also actively exploring another promising approach to wide field-of-view performance that serendipitously emerged during their initial development of the underlying theoretical framework, suggesting that this breakthrough might be just the beginning of a series of innovations.
The significance of this work has been recognized by experts in the field. Joyce Poon, a distinguished professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not directly involved with this specific research, offered high praise. "This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas," Poon states. She further emphasized, "The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology," underscoring the fundamental nature of the problem solved and the elegance of the MIT team’s solution.
Beyond its immediate technical implications, this advance holds the potential to significantly accelerate the adoption of solid-state lidar across various industries. By offering a path to more affordable, compact, and durable sensors, it can enable new applications in consumer electronics, industrial automation, smart infrastructure, and even augmented reality, where precise environmental mapping is critical. The reduction in cost and increase in reliability could transform lidar from a specialized, high-end component to a ubiquitous sensor, much like cameras are today. This shift would not only enhance safety in autonomous systems but also unlock novel capabilities that rely on robust, real-time 3D perception.
The research received vital support, in part, from various esteemed organizations, including the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. Furthermore, some of the intricate experimental work and fabrication processes were meticulously carried out using the state-of-the-art facilities at MIT.nano, a testament to the collaborative and resource-intensive nature of cutting-edge scientific discovery. This foundational support and access to advanced infrastructure were instrumental in bringing this innovative lidar technology from concept to demonstrated reality.
