Some breakthroughs in physics come from brand new inventions. Others begin with a new theory. But many advances happen when researchers combine familiar technologies in an unexpected way and create something more powerful than the individual parts. This principle is at the heart of a groundbreaking development in particle physics, where scientists are leveraging advanced camera technology to radically transform how weakly interacting particles are detected and how energy is measured in high-energy experiments. The innovation promises to overcome long-standing challenges in detector design, offering a path to more precise, scalable, and cost-effective instruments for exploring the universe’s most elusive components.
The search for weakly interacting particles, such as neutrinos and certain dark matter candidates, presents one of the most formidable challenges in modern physics. These particles are notoriously difficult to detect because they interact with ordinary matter only very rarely, requiring massive detectors and highly sensitive instrumentation to capture their fleeting signals. Neutrinos, for instance, are fundamental particles with almost no mass and no electric charge, constantly streaming through Earth by the trillions, yet interacting with atoms so infrequently that detecting even a handful requires immense experimental setups. Similarly, the hypothetical particles constituting dark matter—which accounts for an estimated 27% of the universe’s mass-energy budget—are predicted to interact even more feebly, making their direct detection a holy grail for physicists worldwide.
The conventional strategy to increase the odds of observing these faint interactions involves building increasingly larger detectors and enhancing their spatial resolution to pinpoint the precise location of an interaction. However, this approach rapidly escalates in complexity and cost. Each increment in size and resolution often necessitates more intricate designs, more materials, and more sophisticated readout electronics, leading to a technological and financial bottleneck that limits the scope of future experiments.
Similar stringent demands apply to calorimeters, essential devices in collider experiments like those at CERN. These instruments are designed to measure the total energy carried by particles produced in high-energy collisions. Accurate energy measurement is crucial for reconstructing the properties of new particles and processes, but achieving the necessary precision often requires highly segmented and complex calorimeter designs.
The Intricacies and Limitations of Conventional Particle Detectors
Most contemporary particle physics experiments rely on reconstructing the three-dimensional (3D) paths of elementary particles as they traverse through large volumes of dense detector material. One of the most common and versatile materials used for this purpose is a scintillator. When a charged particle passes through a scintillator, it excites the atoms of the material, causing them to emit tiny flashes of visible light. By detecting and analyzing these light flashes, scientists can infer the particle’s trajectory, its interaction points, and often its energy.
To achieve high spatial resolution—the ability to precisely locate where an interaction occurred—the scintillator material is traditionally divided into a vast number of small, active sections. These sections can take the form of small cubes, thin fibers, or intricate arrays. Optical fibers are then meticulously threaded through or connected to each section to collect the photons produced. These fibers transport the light to sensitive photodetectors, such as photomultiplier tubes (PMTs) or silicon photomultipliers (SiPMs), which count the photons and convert the optical signal into an electrical one. The timing and intensity of the light signals from various sections allow physicists to triangulate the particle’s path.
While this segmented approach has proven highly effective and precise, enabling groundbreaking discoveries, it faces significant challenges in terms of scalability and engineering. Consider the T2K neutrino-oscillation experiment in Japan, a leading experiment investigating neutrino properties. Its detectors utilize approximately two tons of sensitive material, meticulously crafted from about two million individual scintillator cubes, each requiring its own readout pathway via a complex network of 60,000 optical fibers. At the European Organization for Nuclear Research (CERN) and the Paul Scherrer Institute (PSI), experiments like LHCb and Mu3e push the boundaries further, achieving sub-millimeter spatial resolution by deploying millions of thin scintillating optical fibers.
These impressive systems stand as testaments to what segmented detectors can achieve, yet they also starkly illustrate the growing problem. As the ambition for larger and more sensitive detectors grows, the manufacturing, precise assembly, and individual readout of millions of discrete components become a major technological, logistical, and financial bottleneck. The sheer number of connections, calibration points, and potential failure modes adds layers of complexity, making construction incredibly time-consuming, labor-intensive, and exorbitantly expensive. The infrastructure required to process and store data from millions of individual channels is also immense, pushing the limits of current computing capabilities.
A Paradigm Shift: The PLATON Project’s Radical New Approach
Against this backdrop of escalating complexity, a team of researchers from ETH Zurich and EPFL (Swiss Federal Institute of Technology Lausanne) is proposing a radically different strategy. Instead of segmenting the detector into millions of tiny units, their system employs advanced camera technology to reconstruct the origin of light flashes within a single, large, unsegmented block of scintillator material. This innovative approach promises to simplify detector design, reduce manufacturing costs, and streamline data acquisition, while maintaining or even surpassing the spatial resolution of conventional systems.
PhD student Till Dieminger, senior scientist Dr. Saúl Alonso-Monsalve, Professor Davide Sgalaberna, and their colleagues in Sgalaberna’s group at ETH Zurich, in collaboration with members of the Advanced Quantum Architecture Lab at EPFL in Lausanne led by Professor Edoardo Charbon, have developed and tested the first prototype of this revolutionary detector. Named PLATON (PLenoptic Advanced Tracking Of Neutrinos), the system is designed to perform ultrafast, high-resolution 3D particle imaging within a monolithic block of scintillator. Their prototype demonstration and an extensive series of simulations were recently detailed in a landmark publication in Nature Communications, signaling a significant leap forward in particle detection technology.
Turning Light Field Photography into a Precision Physics Tool
The core innovation of PLATON draws inspiration from plenoptic cameras, also known as light field cameras, a technology more commonly found in consumer photography or virtual reality applications. Unlike an ordinary camera, which primarily records the intensity of incoming light at each pixel, a light field camera captures not only intensity but also crucial information about the direction from which the light arrived. This additional directional data allows the camera to recover depth information and reconstruct a scene in three dimensions, much like how human vision perceives depth by combining slightly different views from two eyes.
The technology relies on a micro-lens array (MLA), a precisely fabricated sheet containing thousands to millions of tiny lenses, strategically placed between the camera’s main lens and its imaging sensor. Each microscopic lens acts like an individual, miniature camera, recording the same scene but from a slightly different angle. When the information from all these individual lenses is computationally combined, the system can reconstruct a comprehensive "light field," which precisely describes the intensity, position, and direction of all incoming light rays.
For particle detection, this ability to capture directional light information is particularly useful because the light emitted inside a scintillator from a particle interaction may be extremely faint, consisting of only a few photons. When plenoptic cameras are paired with single-photon avalanche diode (SPAD) array sensors, they gain the extraordinary sensitivity required for such demanding applications. SPADs are highly specialized semiconductor devices capable of detecting individual photons with high efficiency and extremely precise timing. This combination allows PLATON to potentially reconstruct particle tracks even when very little light is available, a critical advantage for detecting weakly interacting particles. Despite their immense promise, light field cameras had not been previously explored for particle tracking in fundamental physics experiments.
Inside the PLATON Prototype: Precision Engineering for Elusive Particles

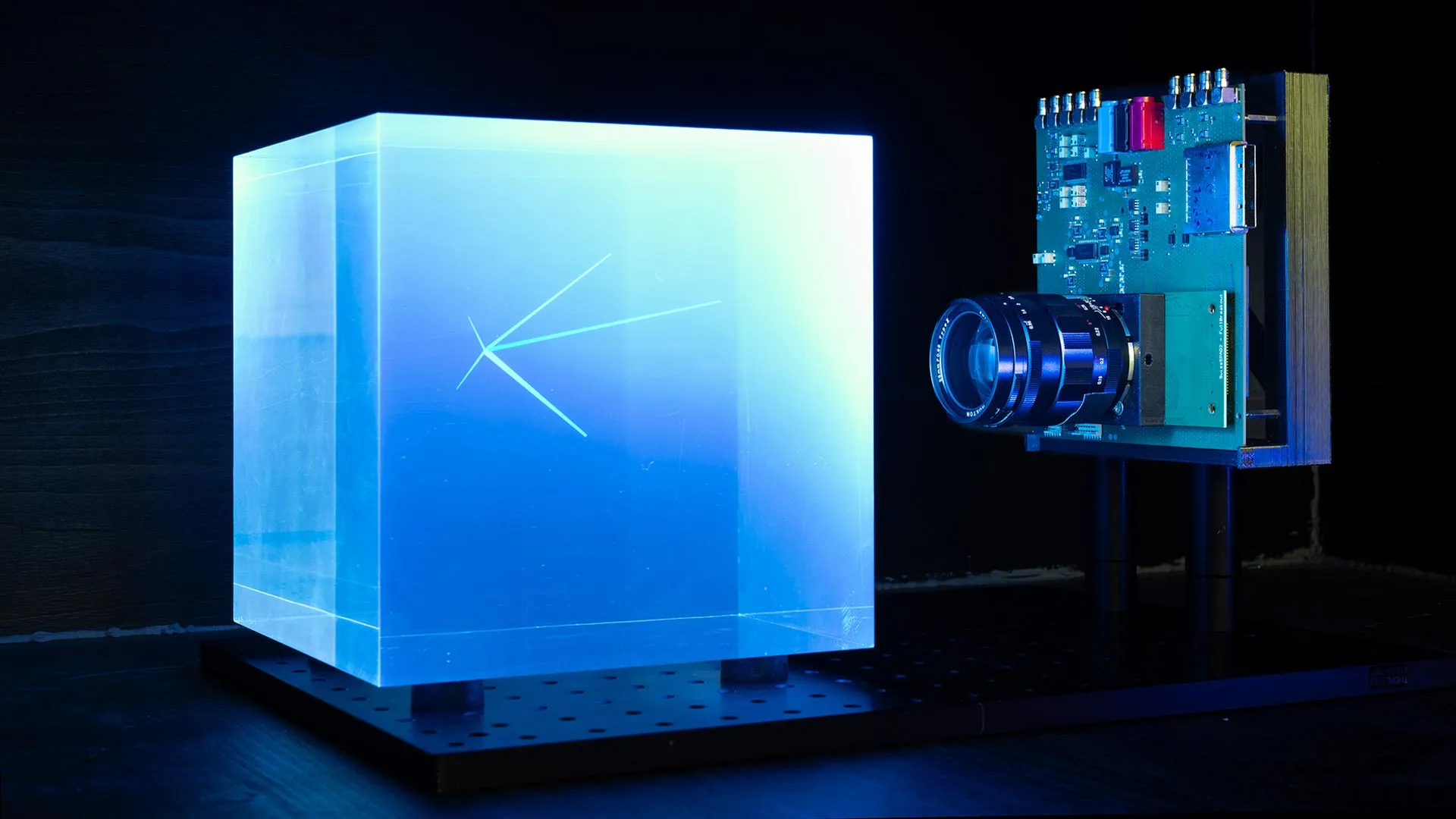

The development of the PLATON system was made possible through dedicated funding from the Swiss National Science Foundation. The ETH Zurich-EPFL team constructed a proof-of-concept detector that integrates a custom-designed micro-lens array with a state-of-the-art SPAD imaging sensor. The sensor, known as SwissSPAD2, was developed specifically by the EPFL team, renowned for their expertise in advanced photon detection technologies. Raytrix GmbH, a company specializing in plenoptic imaging, designed the micro-lens array and expertly mounted it directly onto the SwissSPAD2 sensor, creating a compact and highly integrated plenoptic imaging system.
A key feature of the SwissSPAD2 sensor is its capability for gated photon detection. This means the sensor can be precisely programmed to record photons only within defined, very short time windows. This timing control is crucial for particle physics experiments, as it helps researchers focus on the specific periods when genuine scintillation light from a particle interaction is most likely to be present. By selectively opening and closing these temporal "gates," the system can effectively filter out random background signals, dark counts inherent to electronic sensors, and other spurious photon events that could obscure the faint signals of interest.
Rigorous Testing and Validation: Proving the Concept
The researchers rigorously tested PLATON’s spatial resolution in controlled laboratory experiments. They evaluated its performance across a wide range of light levels, from several hundred detected photons down to an incredibly low five photons. This extensive testing demonstrated the system’s ability to operate effectively even under extreme light scarcity, a common scenario in neutrino and dark matter experiments.
Furthermore, the team evaluated the prototype’s ability to detect electrons and accurately reconstruct their positions within a block of plastic scintillator. The electrons were reliably produced using a strontium-90 source, a standard radioactive source for calibrating particle detectors. Across all different test conditions and light levels, the experimental measurements closely matched the predictions from detailed simulations. This strong agreement provided the researchers with high confidence that their theoretical models accurately describe the detector’s performance, laying a solid foundation for future development. The promising results from this first demonstrator have already significantly shaped the team’s plans for the next, more advanced version of PLATON.
The Next Generation of PLATON: Faster Timing and Enhanced Sensitivity
Building on the success of the prototype, the researchers are actively developing a new SPAD array sensor designed to push the boundaries of performance even further. This next-generation sensor aims to significantly improve photon detection efficiency—meaning it will capture a higher percentage of the emitted photons—and, crucially, provide sub-nanosecond timing for individual photons. In the current prototype, photons are assigned to fixed time windows; however, in the upgraded version, each detected photon will receive its own precise, individual time stamp.
This added temporal precision is expected to dramatically enhance the system’s ability to determine more accurately where each photon originated within the scintillator block. By combining highly precise spatial and temporal information for each photon, the reconstruction of complex particle tracks will become far more accurate and detailed. The researchers have also optimized the plenoptic camera’s optical design to expand its field of view and collect even more light, further boosting sensitivity. Simulations presented in their Nature Communications paper strongly suggest that these combined improvements will lead to a substantial enhancement in PLATON’s spatial resolution.
AI Unravels Hidden Particle Interactions: A Transformer for Photons
A particularly innovative aspect of the upgraded PLATON system is the integration of advanced artificial intelligence for data analysis. The team used simulations to estimate how an enhanced PLATON system could perform when detecting neutrinos, incorporating a novel image-processing method based on a neural network (NN). This NN employs a Transformer architecture, a type of deep learning model that has recently revolutionized natural language processing (e.g., in large language models like GPT).
However, instead of analyzing patterns in words or sentences, this specialized Transformer examines intricate patterns among the scintillation photons recorded by the detector. It is meticulously designed to identify subtle correlations in where and when individual photons appear. By processing this rich spatial and temporal information, the neural network can reconstruct the original particle interaction with unprecedented clarity and precision, even distinguishing between different types of interactions.
The simulations are highly encouraging, indicating that an unsegmented PLATON detector with a modest volume of (10x10x10)cm³ could realistically achieve a spatial resolution below 1mm. Furthermore, the simulations suggest that the system could identify neutrino interactions that produce low-momentum protons in the final state with both high purity and high efficiency. This is a crucial capability for neutrino physics, as low-momentum protons are often difficult to detect with traditional methods but are vital for precisely reconstructing neutrino energy and interaction types, which are key to understanding neutrino oscillations and their role in the universe. The ability to select desired events while effectively rejecting unrelated background signals would be a major advantage for future neutrino experiments.
Scaling Up: Towards Cubic Meter Detectors Without Segmentation
Looking beyond the laboratory prototype, the researchers also explored the scalability of this technology for much larger detectors. Due to the immense computational resources required, they did not run full neutrino simulations for a one-cubic-meter block of unsegmented scintillator. Instead, they modeled a simplified point-like source of photons within such a large volume to assess the fundamental spatial resolution capabilities.
The simulations suggest that a detector of this substantial size could achieve a spatial resolution of a few millimeters. This performance would place it on par with some of the most advanced state-of-the-art plastic scintillator detectors currently in operation. The result is especially notable because PLATON would achieve this impressive performance without the need for dividing the scintillator into millions of individual pieces, eliminating the associated manufacturing, assembly, and readout complexities. The authors are optimistic that further improvements to the optical design, along with continued advancements in SPAD sensor technology and AI algorithms, could eventually make sub-millimeter resolution possible in PLATON-type detectors with volumes significantly larger than 1m³. Such a development would open new avenues for massive, yet relatively simple, next-generation neutrino and dark matter observatories.
Beyond Particle Physics: Broadening the Impact of PLATON Technology
The ETH Zurich researchers believe that the potential applications of this technology extend far beyond neutrino experiments and particle colliders. Because PLATON is fundamentally designed to reconstruct the position of faint light signals in three dimensions with high precision, it could significantly improve a wide range of imaging systems across various scientific and medical fields.
Till Dieminger, Saúl Alonso-Monsalve, and Davide Sgalaberna have already recognized this broader potential and have filed three separate patents involving the use of PLATON technology in positron emission tomography (PET). PET is a critical medical imaging method used to track radioactive tracers inside the body, providing detailed, functional images of organs and tissues and revealing metabolic activity, blood flow, and receptor binding. Current PET scanners often face limitations in spatial resolution and detection efficiency, which PLATON’s capabilities could directly address. The patents cover both the innovative scanner design that integrates plenoptic imaging with SPAD technology, and the sophisticated image-processing techniques, including the advanced neural network developed by Alonso-Monsalve, to reconstruct images from the faint photon signals.
The history of particle physics is replete with examples of fundamental research leading to transformative technologies that find widespread applications. The World Wide Web, for instance, was originally conceived at CERN to facilitate information sharing among particle physicists. Similarly, proton therapy, a highly precise form of cancer treatment, grew directly from advances in particle accelerators and radiation physics. PLATON is poised to become another compelling example of how curiosity-driven research in fundamental physics can lead to revolutionary technologies with major scientific and medical applications, promising a brighter future for both our understanding of the universe and human health.
