For over a century, the Hall effect has served as an indispensable tool for physicists and engineers, offering a window into the charge transport properties of various materials. Its genesis traces back to 1879 when American physicist Edwin Hall, then a doctoral student at Johns Hopkins University, made a profound observation. He found that when an electric current flows through a conductor and a magnetic field is applied perpendicular to the direction of the current, a voltage difference emerges across the conductor, perpendicular to both the current and the magnetic field. This transverse voltage, now known as the Hall voltage, arises because the moving charge carriers within the material experience a Lorentz force, pushing them to one side of the conductor.
The magnitude and polarity of this Hall voltage provide crucial information about the material under investigation. By measuring this voltage, scientists can deduce whether the current is carried by positively charged "holes" or negatively charged "electrons," determine the density of these charge carriers, and assess their mobility within the material. This fundamental insight has been instrumental in the development of countless modern technologies. Hall effect sensors are ubiquitous, found in everything from detecting the position of crankshafts and camshafts in automobile engines, enabling anti-lock braking systems, and controlling brushless DC motors, to sensing key presses in computer keyboards and detecting magnetic fields in industrial automation. They are vital components in compasses, current sensors, and even advanced medical devices.
However, a core assumption underpinning both the classical Hall effect and its more complex cousin, the anomalous Hall effect (AHE), has always been the necessity of a magnetic field or material magnetization component acting perpendicular to the plane of the current flow. This perpendicular geometry has been a bedrock principle, dictating how these effects are observed and exploited in devices. It is precisely this century-old paradigm that researchers in Carnegie Mellon’s Department of Physics, specifically within the innovative Lab for Investigating Quantum Materials, Interfaces and Devices (LIQUID), have now fundamentally challenged.
"For a long time, people thought the Hall effect only worked when the magnetic field was applied perpendicular to the plane of the film. We’ve shown that that’s not true — you can also get a response when the field is in-plane," explained Simranjeet Singh, an associate professor of physics and a lead investigator on the project. This revelation signifies that a Hall response, particularly one tied to the material’s intrinsic magnetization, is not restricted to a single, perpendicular direction but can manifest in multiple orientations. This dramatically broadens the scope for physicists to explore and understand multidimensional magnetic and topological structures within condensed matter systems, potentially uncovering new quantum phenomena.
The implications for technological innovation are equally profound. "Beyond fundamental importance, this discovery can enable novel planar device architectures and sensor types, such as vector magnetometry, via measuring the out-of-plane and in-plane anomalous Hall effect signals in the same device," Singh added. Vector magnetometry, the ability to measure the direction and magnitude of a magnetic field in three dimensions, typically requires multiple sensors oriented differently. This new finding suggests that a single, ultrathin device could perform this complex task, leading to significant miniaturization and cost reduction.
The journey to experimentally demonstrate an in-plane anomalous Hall effect was a challenging one, as theoretical predictions of such a phenomenon had existed for some time without successful empirical verification. "People proposed it and ideas were out there, but it’s very difficult to make a magnetic material with the right symmetry to do it," Singh noted. The critical hurdle lay in identifying and fabricating a magnetic material with the specific crystal symmetry necessary to support this unconventional response. The CMU team’s success stemmed from their ingenuity in material selection and advanced nanoscale engineering. "What we did was we found a material with the right symmetry, and we made it magnetic," Singh elaborated, highlighting the elegance of their solution.
Creating the nanometer-sized devices essential for this pioneering experiment demanded a confluence of expertise in the burgeoning field of two-dimensional quantum materials. Singh collaborated closely with Jyoti Katoch, another associate professor of physics specializing in the intricate fabrication of devices from these atomically thin materials. The interdisciplinary research team also included postdoctoral researchers I-Hsuan Kao and Ravi Kumar, whose meticulous experimental work was critical to the project’s success.
The researchers began with tantalum iridium telluride (TaIrTe4), a material whose unique crystal structure inherently possesses the specific low symmetry required to facilitate a multidimensional Hall effect. To harness this property, the team painstakingly reduced the TaIrTe4 to a thickness of only a few atomic layers. The crucial next step involved placing this atomically thin TaIrTe4 layer in intimate contact with a magnetic layer composed of chromium germanium telluride (Cr2Ge2Te6), abbreviated as CGT.
The magic happens at this interface. Due to the extreme proximity of the two layers, the magnetic behavior of the CGT layer subtly influences the adjacent, normally nonmagnetic TaIrTe4. This phenomenon, known as the magnetic proximity effect, effectively imbues the TaIrTe4 with magnetic properties without altering its fundamental electronic characteristics. This ingenious heterostructure engineering allowed the TaIrTe4 to retain its specific electronic band structure and crystal symmetry while acquiring the necessary magnetic ordering. "This truly demonstrates the power of building atomically precise heterostructures of emergent two-dimensional quantum materials to obtain on-demand electronic and magnetic properties," Katoch emphasized, underscoring the precision and control achievable with modern materials science techniques.

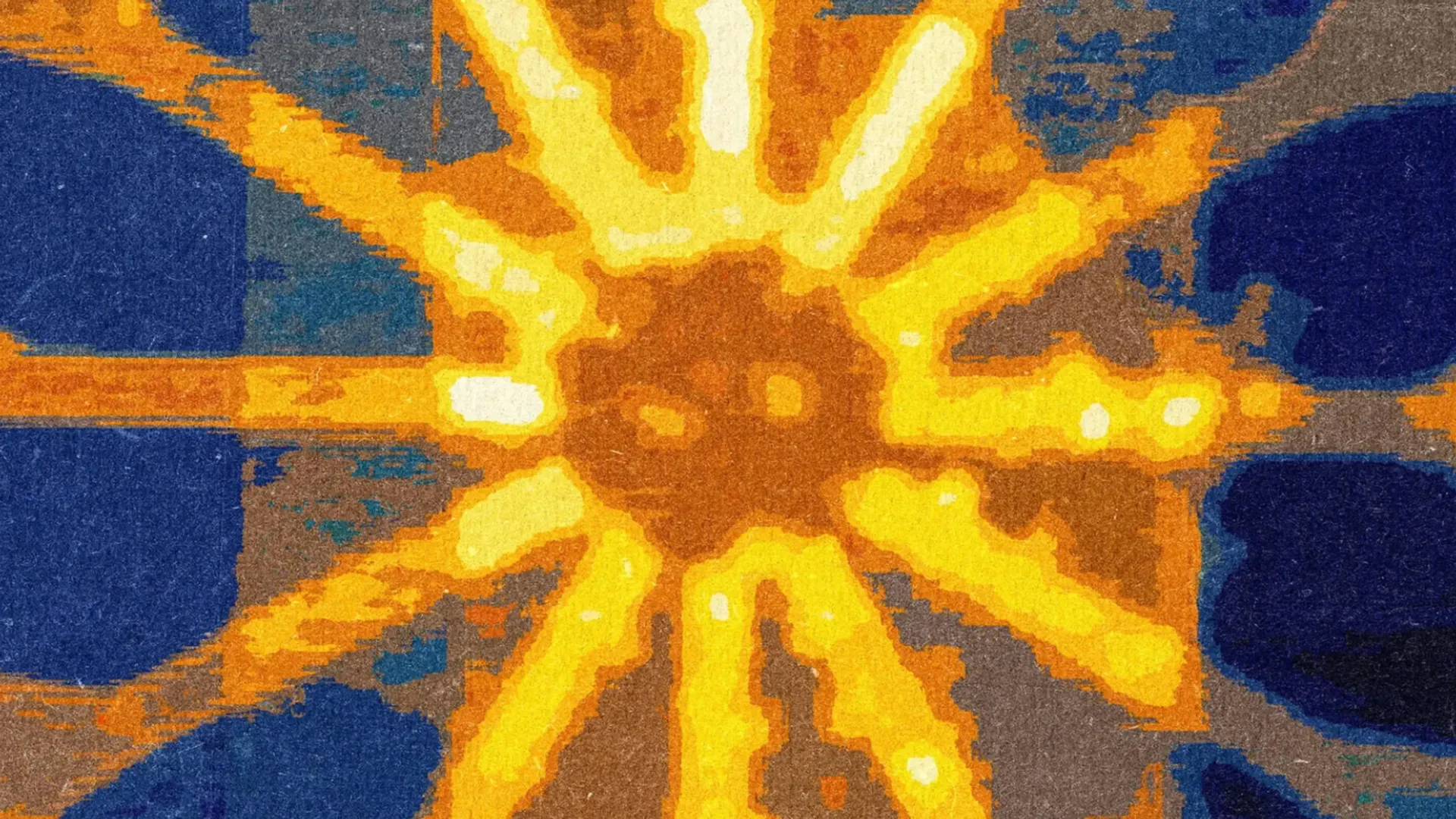

Within these meticulously crafted atomically thin devices, the researchers successfully detected two distinct Hall signals. One was the familiar, conventional Hall signal, typically associated with an out-of-plane magnetic field. The second, however, was the groundbreaking discovery: an unconventional Hall signal directly linked to magnetization lying within the plane of the material itself. This dual detection within a single ultrathin device represents a monumental shift in how magnetic fields can be sensed.
This capability to detect magnetic fields along more than one axis with a single device has profound practical implications. As Singh pointed out, "We have broadened the potential application of these materials. You can do multidimensional magnetic sensing with one sensor only. Before, you needed to put two sensors to measure the magnetic field in two directions." This direct advantage means that future magnetic sensing systems could perform comprehensive, multidirectional measurements using a single, compact sensor, eliminating the need for complex arrays of individually oriented sensors.
Imagine the impact on various industries. In automotive applications, this could lead to more compact and robust sensors for navigation, engine control, and advanced driver-assistance systems (ADAS), where space and reliability are paramount. For medical imaging, smaller and more sensitive magnetometers could enable higher-resolution diagnostics or even portable MRI machines. In consumer electronics, it could facilitate more intuitive gesture control, improved navigation in smart devices, and advanced virtual or augmented reality experiences. Furthermore, in the realm of spintronics and quantum computing, where precise control and detection of magnetic states are crucial, this discovery could unlock new avenues for data storage and processing architectures.
Complementing the experimental efforts, Shubhayu Chatterjee, an assistant professor of physics, employed sophisticated theoretical modeling to unravel the underlying mechanisms behind this unprecedented effect. His work provided crucial insights into why the in-plane anomalous Hall effect emerges and how the specific symmetry of the combined TaIrTe4/CGT heterostructure enables it.
"We found that the reduced symmetry due to pairing with CGT allows additional spin-orbit coupling at the interface," Chatterjee explained. Spin-orbit coupling, an interaction between an electron’s spin and its orbital motion, is a key ingredient in many topological and magnetic phenomena. "These spin-orbit coupling terms are crucial for the in-plane anomalous Hall effect to emerge once CGT becomes ferromagnetic at low temperatures." Chatterjee’s theoretical framework helps explain how the proximity effect not only induces magnetism but also modifies the electronic band structure in a way that facilitates this unusual Hall response. He also noted, "While certain features of the observed anomalous Hall effect signal are consistent with an intrinsic origin, a detailed characterization of few-layered TaIrTe4 is needed to nail down the precise mechanism," indicating that further research is required to fully elucidate the intricate quantum mechanics at play. The distinction between intrinsic (band structure-driven, related to Berry curvature) and extrinsic (scattering-driven) origins of the anomalous Hall effect is a rich area of ongoing research in condensed matter physics, and this new discovery offers a unique platform to explore these nuances.
The LIQUID team at Carnegie Mellon is not resting on its laurels. Their ongoing research focuses on exploring additional material combinations that could potentially yield the same unconventional Hall response, broadening the palette of materials suitable for these novel sensors. A critical next step involves testing how the device performs at room temperature. Currently, the observed effect is most pronounced at lower temperatures, a common characteristic of quantum phenomena. Achieving robust operation at ambient temperatures is an essential requirement for the widespread adoption of this technology in practical, everyday applications, from portable devices to industrial sensors.
This monumental achievement by Carnegie Mellon University researchers stands as a testament to the enduring vitality of fundamental scientific inquiry. By challenging a century-old assumption about the Hall effect, they have not only deepened our understanding of how magnetism and electricity interact at the quantum level but have also laid the groundwork for a new generation of compact, versatile, and powerful magnetic sensors. As the world increasingly relies on precise magnetic field detection for everything from self-driving cars to advanced medical diagnostics, this discovery promises to be a transformative force, pushing the boundaries of what is possible in condensed matter physics and quantum materials engineering. The future of sensing, it seems, is now decidedly multidimensional.
